BEYMAKSAN

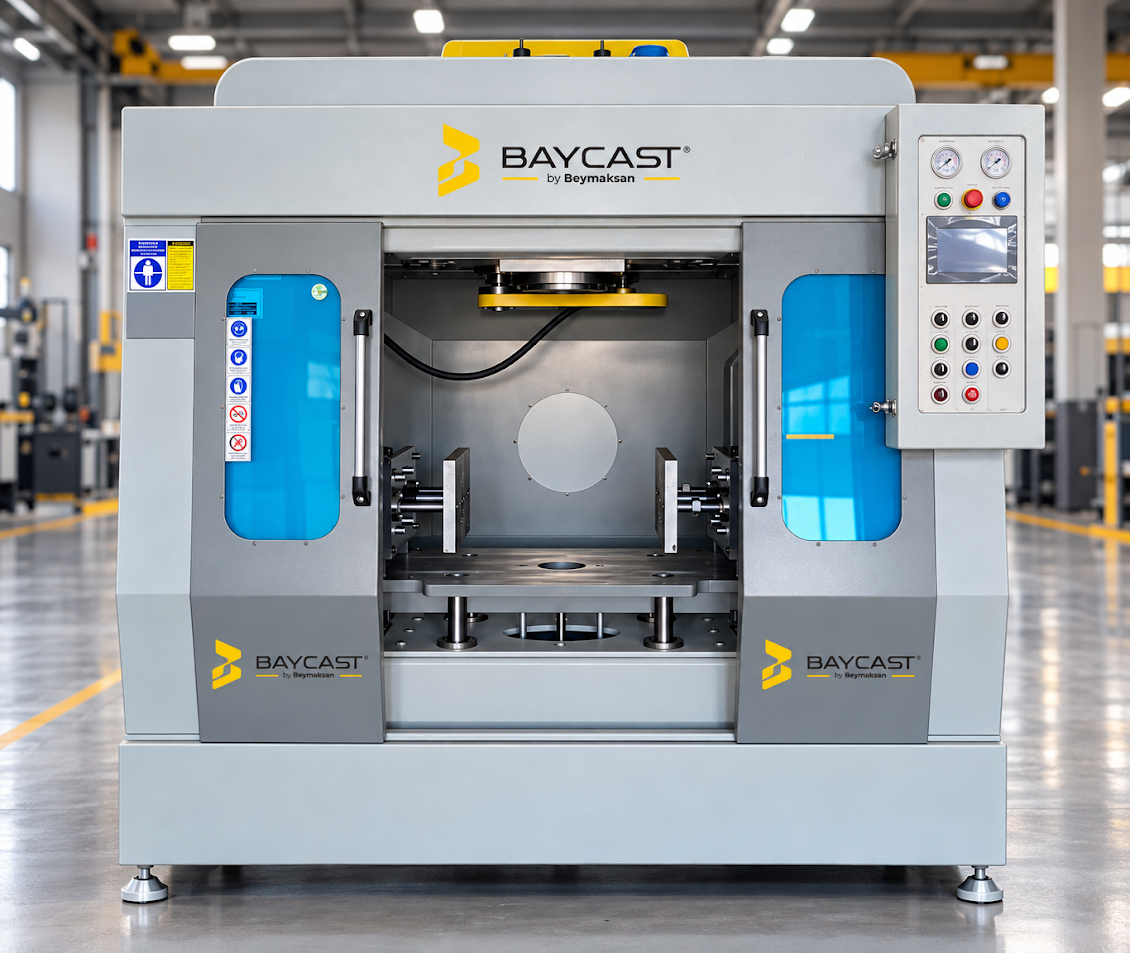

CB 15 Vertical Core Machine
Product Type
Vertical Core Machine
Model
CB 15
Process
CO₂ / Amine (Cold Box) / Betaset
Production Type
Standard / Custom
Application
Foundry Industry
Custom Manufacturing
Available
BEYMAKSAN
Product Description
BEYMAKSAN CB-15 Vertical Core Machine is a pneumatic production machine designed for sand core manufacturing in the foundry industry. Its structure is suitable for CO₂, Amine (Cold Box) and Betaset hardening processes, providing solutions for different production requirements.
With a 10-liter (approximately 15 kg) sand blowing capacity, 2,000 kg clamping force and a 34-second cycle time, it supports serial production applications. Its compact structure and design, which provides ease of operation and maintenance, enable efficient working conditions in foundries.
Technical Specifications
| Technical Specification | Value |
|---|---|
| Model | CB-15 |
| Machine type | Vertical Core Machine |
| Operating system | Pneumatic |
| Sand blowing capacity | 10 L / approximately 15 kg |
| Table dimensions | 500 × 500 × 500 mm |
| Clamping force | 2,000 kg |
| Cycle time | 34 seconds |
| Core hardening processes | CO₂ / Amine (Cold Box) / Betaset |
| Ejector stroke | 160 mm |
| Sand silo capacity | 120 kg |
| Air consumption | 60 L/min |
| Machine dimensions (L × W × H) | 1,800 × 1,200 × 2,800 mm |
| Machine weight | 1,500 kg |
Application Areas
Production of sand cores used in automotive, pump, valve, agricultural machinery, machinery manufacturing and general foundry industries.
